Managing complex wiring systems in modern infrastructure—ranging from data centers and power plants to high-speed rail lines and petrochemical facilities—requires robust, reliable support. The foundation of this critical management is the electrical cable tray system. A properly installed electrical cable tray not only organizes cables but also ensures their safety, longevity, and efficient operation. Hebei Yidian Import and Export Trading Co., Ltd. is a professional manufacturer focused on the research and development, production, and sales of these essential cable support systems.
This comprehensive guide delves into the crucial considerations, selection processes, and installation principles for various types of electrical cable tray systems, ensuring you achieve a code-compliant and highly effective cable management solution.
Table of Contents
Understanding and Selecting Your Electrical Cable Tray System
Before any installation begins, selecting the correct electrical cable tray type and material is paramount, as the environment dictates the required performance, such as corrosion resistance, load-bearing capacity, and fire rating. Hebei Yidian produces cable trays made of all materials, including fiberglass (FRP), polymer, and steel, which are suitable for multiple scenarios such as power, construction, and mining.
Key Types of Electrical Cable Trays
The structural design of the electrical cable tray directly influences ventilation, protection, and ease of cable management.

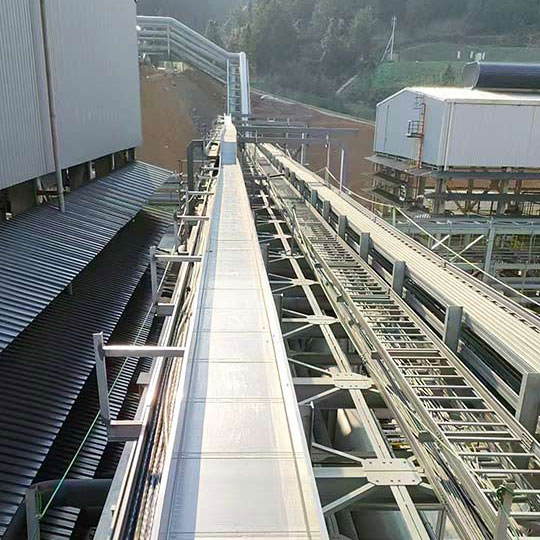

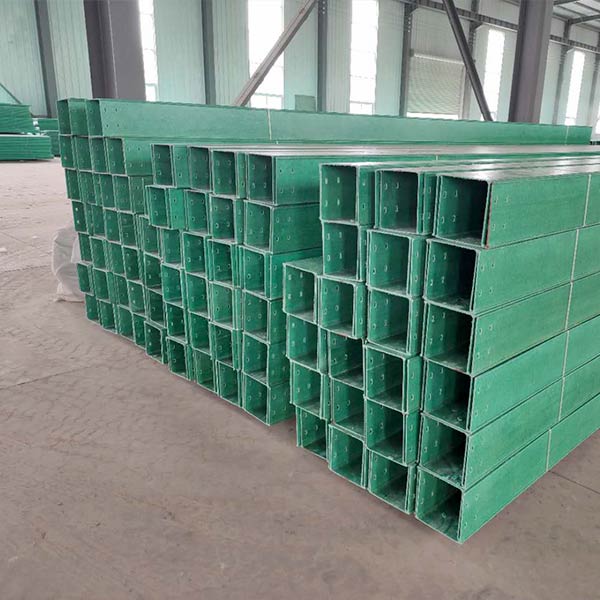

1. Trough Type Electrical Cable Tray: This design, such as the Trough Type Fiberglass Cable Tray, is characterized by a fully enclosed trough design, offering maximum protection against dust and external interference. The trough-type fiberglass bridge provides strong chemical adaptability and corrosion resistance. The durable trough-type galvanized electrical cable tray is designed for heavy-duty cable support.
2. Ladder Type Electrical Cable Tray: Seen in the Galvanized Ladder Cable Tray and Ladder Type Stainless Steel Cable Tray, this type features superior ventilation and heat dissipation, which is crucial for preventing the danger of overheating due to cable operation. The ladder-type design is beneficial for easy cable management.
3. Trapezoidal/Tray Type Electrical Cable Tray: The Trapezoidal FRP Cable Tray utilizes a trapezoidal structural design made of fiberglass reinforced plastic (FRP). This design specifically improves overall stability and load-bearing capacity while remaining lightweight and high-strength.
4. Stepped Polymer Plastic Cable Tray: This specialized type of electrical cable tray is made by high-temperature curing and composite molding of polyvinyl chloride resin and galvanized steel plate. It features a beautiful appearance, resistance to corrosion, resistance to acid and alkali, anti-static properties, and fast heat dissipation. It has greater strength than ordinary bridge frames.
5. Composite Epoxy Resin Cable Tray: This unique electrical cable tray adopts the manual hand lay-up process, perfectly combining iron plates with fiberglass reinforced plastic. This system retains the strength of steel cable trays and the excellent corrosion resistance of fiberglass reinforced plastic cable trays.
Materials and Environmental Suitability
Choosing the right material for the electrical cable tray is critical for durability, especially in demanding environments.
• FRP (Fiberglass Reinforced Plastic): Lightweight, high-strength, and corrosion-resistant, suitable for harsh environments such as the petrochemical industry and marine engineering.
• Galvanized Steel: Cost-effective and rust-resistant, galvanized cable trays (available in trough, ladder, and tray types) are ideal for infrastructure, power plants, and shopping malls, providing wiring protection in multiple scenarios.
• Stainless Steel: The stainless steel bridge is inherently corrosion-resistant and high-strength, making it ideal for industrial and outdoor applications.
• Fireproof Cable Tray: These are essential for high-risk areas like power plants, underground garages, and data centers. They are corrosion-resistant and guarantee a fire resistance time of over 30 minutes.
• Polymer Plastics: Used in the Stepped Polymer Plastic Cable Tray, this material offers superior resistance to acid and alkali and is anti-static, making it widely used in harsh environments such as chemical plants, metallurgy, and petroleum.
Pre-Installation Planning and Scenario-Based Selection
A successful electrical cable tray installation begins with meticulous planning that determines the overall safety and compliance of the system.
Sizing, Load Calculation, and Accessories
It is important to determine the appropriate dimensions and weight capacity. Installers should consult the ultimate guide to electrical cable tray dimension selection, which covers sizing, weight capacity, and standard specifications necessary for code-compliant installations. For efficient installations, it is also essential to utilize cable tray accessories, including clamps and hold downs, to secure and organize the electrical cable tray system efficiently.
Matching the Electrical Cable Tray to the Application
The route and environment must dictate the selection criteria:
• Energy Infrastructure: For substations, photovoltaic/wind power, and data centers, the electrical cable tray must act as a security guardian, necessitating high-temperature-resistant, anti-aging, fireproof, and explosion-proof solutions.
• Corrosion-Resistant Scenes: In environments like petrochemical plants and marine engineering, the electrical cable tray must resist acid and alkali corrosion and salt spray, making it the technical benchmark for such harsh environments.
• High Temperature and Heavy Load: For complex environments around high-strength industrial furnaces, such as in steel mills and smelting workshops, the electrical cable tray must be high temperature and impact resistant.
• Complex Working Conditions: In mines, tunnels, and open-pit mines, the system requires a safety guarantee that is vibration-resistant, dust-resistant, and explosion-proof.
• Rail Transit: For projects like subways, high-speed railways, and cross-sea bridges, the electrical cable tray must be UV-resistant, lightweight, and meet international fire protection standards.
Generalized Installation Procedure for Electrical Cable Tray
While installation requirements differ based on the material (e.g., galvanized vs. FRP) and mounting structure, the following steps outline the general logistics of installing an electrical cable tray system. Hebei Yidian offers a full cycle service, including free installation guidance from after-sales engineers, to ensure correct and efficient setup.
Step 1: Preparation and Safety
Ensure all necessary tools and personnel protection equipment (PPE) are ready. Verify that all components of the electrical cable tray system have passed full process quality inspection, from raw materials to finished products.
Step 2: Mounting Support Installation
Securely install the structural supports (hangers, brackets) to the building structure according to calculated load specifications. The supports must accommodate the weight of the electrical cable tray and the cables it will hold.
Step 3: Positioning and Connecting Sections
Lift and position the straight sections of the electrical cable tray onto the supports. Use appropriate couplers or splices to connect sections, ensuring a rigid and continuous pathway. For durable trough type galvanized electrical cable tray, proper alignment during connection is vital for maintaining heavy-duty support.
Step 4: Installing Fittings and Direction Changes
Install fittings such as elbows, crosses, or tees to navigate elevation or direction changes. These must respect the minimum bending radius required for the contained cables.
Step 5: Cable Laying and Securing
Once the structure of the electrical cable tray is complete, cables can be laid inside. Ensure proper segregation (if required) and use essential cable tray accessories, such as clamps and hold downs, to secure and organize the electrical cable systems efficiently within the electrical cable tray. The ladder-type design of the electrical cable tray is particularly useful here due to easy cable management.
Step 6: Final Inspection and Grounding
Conduct a comprehensive final inspection to verify that all connections are secure and that the system is properly grounded and bonded according to local codes. Ensure the electrical cable tray system adheres to fill ratios and cable segregation rules.
The Role of Specialized Materials in Electrical Cable Tray Performance
Hebei Yidian emphasizes specialized materials tailored to maximize the lifespan and functionality of the electrical cable tray in extreme conditions.
Fire Resistance for Critical Infrastructure
The Trough Type Fireproof Cable Tray utilizes a high-quality plastic powder coating to ensure long-term protection against rust, moisture, and chemicals. This coating guarantees a crucial fire resistance time of over 30 minutes, making the fire-resistant electrical cable tray a security guardian in energy infrastructure like power plants and data centers.
Corrosion Resistance in Chemical Settings
The Stepped Polymer Plastic Cable Tray is a new type of material that is gradually replacing traditional bridge frames in harsh environments like chemical plants, metallurgy, and petroleum. Its construction by high-temperature curing and composite molding ensures great strength and resistance to corrosion, acid, and alkali. For chemical plants, the Composite Epoxy Resin Cable Tray also provides high-quality protection by retaining the strength of steel cable trays and the superior corrosion resistance of fiberglass reinforced plastic cable trays.
Strength and Lightness in Transit
In the rail transit field, projects like the Jakarta Metro Line 3 require the electrical cable tray to cope with complex environments, including 3,200 hours of strong ultraviolet radiation and salt spray corrosion. The selection of suitable materials, such as lightweight FRP used in the Trapezoidal FRP Cable Tray, ensures durability and compliance with international fire protection standards in challenging transit environments.
Quality Assurance and Professional Support
Choosing a manufacturer with a commitment to quality and service is crucial for a reliable electrical cable tray installation. Hebei Yidian adheres to the business philosophy of “surviving by quality and developing by expanding product varieties”.
The company provides full category coverage, including fiberglass, polymer, and steel cable trays, and supports OEM/ODM customization to design material specifications and functions as needed. Their strong production capacity, with large orders delivered 20% faster, is supported by the Beijing-Tianjin-Hebei hub base.
Quality is strictly controlled through full process quality inspection from raw materials to finished products. This rigorous process, which includes professional team oversight and strict equipment control, ensures that the electrical cable tray products have full performance compliance and a 30% longer life in extreme environments. Furthermore, the company offers full cycle service, including free pre-sales technical consultation and scenario-based design, which reduces costs and increases efficiency by more than 30% during planning and installation.
Table: Electrical Cable Tray Performance Requirements by Environment
The following table summarizes key performance features required by different installation environments, highlighting the necessary attributes of the chosen electrical cable tray material:
| Environment/Application | Material Recommendations | Key Performance Attributes of the Electrical Cable Tray |
| Petrochemical & Marine Engineering | FRP, Stainless Steel, Composite Epoxy Resin | Resistant to acid and alkali corrosion, salt spray resistance, technical benchmark for corrosion-resistant scenes. |
| Substations & Data Centers | Fireproof Cable Tray, Galvanized, FRP | High temperature resistant, anti-aging, fireproof and explosion-proof, providing security guardianship. |
| Steel Mills & Smelting Workshops | Composite Epoxy Resin, Galvanized (Heavy Duty) | High temperature and impact resistance, best choice for high temperature and heavy load environment. |
| Rail Transit (Outdoor) | FRP, Stainless Steel | UV-resistant, lightweight, meeting international fire protection standards, safe and reliable partner. |
| Mines & Tunnels | Galvanized, Composite | Vibration-resistant, dust-resistant, explosion-proof, safety guarantee for complex working conditions. |
| Chemical Plants & Petroleum | Polymer Plastics, Composite Epoxy Resin | Resistance to corrosion, acid and alkali, high strength, anti-static. |
Conclusion
Proper installation of an electrical cable tray system is not just about securing metal or composite pathways; it is about guaranteeing the long-term safety, efficiency, and structural integrity of critical infrastructure. By thoroughly assessing the environment, selecting the appropriate type and material (FRP, Polymer, Galvanized, Stainless Steel, or Composite), utilizing necessary accessories, and following rigorous installation protocols, you ensure your cable management system provides superior protection.
Hebei Yidian Import and Export Trading Co., Ltd. is committed to providing full category coverage, large-scale production capacity, and full quality inspection to “escort” your project. Whether you require a durable trough type galvanized electrical cable tray for a factory or a highly corrosion-resistant composite solution for marine applications, professional guidance and quality manufacturing are the keys to a successful installation.
FAQ
What are the main types of electrical cable tray systems available from Hebei Yidian?
Hebei Yidian offers major types including Trough, Ladder, and Tray/Trapezoidal systems. For example, galvanized cable trays are available in trough, ladder, and tray types, making them suitable for wiring protection in multiple scenarios.
How does the material choice affect the durability of the electrical cable tray in extreme environments?
The material choice is crucial for durability. For example, stainless steel bridges are corrosion-resistant and high-strength. FRP and Polymer Plastics offer superior resistance to chemicals, acids, and salt spray, making the electrical cable tray more adaptable to extreme conditions like the petrochemical industry and marine engineering.
Is professional installation guidance available for complex electrical cable tray projects?
Yes, Hebei Yidian provides a full cycle service, which includes free installation guidance from after-sales engineers and free pre-sales technical consultation, helping to reduce costs and increase efficiency.
What makes the Fireproof electrical cable tray suitable for power plants and underground garages?
Fire-resistant cable trays are widely used in industrial, commercial, and outdoor installations due to their outstanding durability and corrosion resistance. Crucially, the Trough Type Fireproof Cable Tray guarantees a fire resistance time of over 30 minutes, acting as a security guardian in these critical energy infrastructure scenarios.
How is the Stepped Polymer Plastic Cable Tray an improvement over traditional bridge frames?
The Stepped Polymer Plastic Cable Tray is made by high-temperature curing and composite molding. It features resistance to corrosion, acid and alkali, anti-static properties, and fast heat dissipation, giving it greater strength than ordinary bridge frames, making this electrical cable tray a superior choice for harsh chemical environments.
