In today’s industrial and commercial environments, safety, durability, and long-term performance are essential for cable management systems. Among various materials available, FRP cable tray systems have gained significant attention due to their corrosion resistance, lightweight design, and superior strength-to-weight ratio. FRP, short for Fiber Reinforced Plastic, combines the structural advantages of fiberglass with the flexibility of polymer materials, making it a modern alternative to traditional steel or aluminum trays.
FRP cable trays are now widely used in electrical, chemical, and offshore industries where harsh environments demand materials that resist corrosion, heat, and moisture. Their growing adoption reflects a global trend toward cost-efficient and maintenance-free cable support systems.
Table of Contents
Why FRP Cable Trays Are Revolutionizing Cable Management
The use of FRP cable trays brings multiple benefits for engineers, contractors, and facility owners. They are specifically designed to perform in conditions where metallic trays often fail.
Key advantages include:
- Corrosion Resistance: FRP trays do not rust or corrode, even in chemical or marine environments.
- Lightweight Strength: Easier to transport and install without compromising load capacity.
- Electrical Insulation: Non-conductive materials eliminate grounding requirements.
- Low Maintenance: No painting or galvanizing needed; minimal upkeep reduces costs.
- Long Service Life: Resistant to UV rays, chemicals, and fire, ensuring long-term performance.
These benefits make FRP cable trays an ideal solution for industries looking to reduce operational costs while maintaining electrical system reliability.
Types of FRP Cable Trays
Yidian manufactures a wide range of FRP cable tray designs to meet different project requirements.
| Type | Structure | Primary Use |
|---|---|---|
| Ladder Type FRP Cable Tray | Two side rails connected by cross rungs | Heavy-duty power cables, high heat dissipation |
| Perforated FRP Cable Tray | Flat base with slots for ventilation | Instrumentation and control cables |
| Channel Type FRP Cable Tray | Solid or semi-solid bottom channel | Light-duty and enclosed installations |

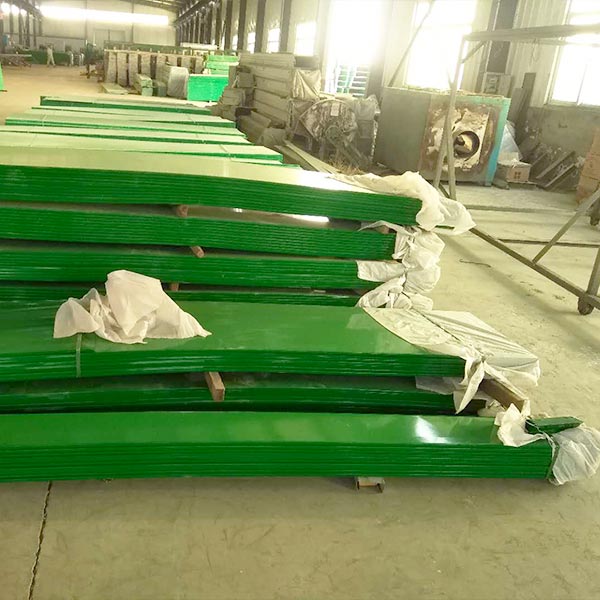

| Trough Type FRP Cable Tray | Partially ventilated bottom | Industrial wiring with moderate airflow |
Each type of tray serves a specific purpose. Ladder trays are ideal for long cable runs, while perforated trays offer airflow and drainage for lighter systems.
Technical Specifications of FRP Cable Trays
Yidian’s FRP trays are designed with high precision, ensuring structural reliability under varying conditions.
| Specification | Range | Notes |
|---|---|---|
| Width | 50mm – 900mm | Custom sizes available |
| Height | 25mm – 200mm | Determines load capacity |
| Thickness | 3mm – 6mm | Based on span and application |
| Span | 1.5m – 6m | Standard industrial spacing |
| Material Composition | Fiberglass Reinforced Plastic (FRP) | Non-conductive and corrosion-resistant |
All trays comply with international standards for fire retardancy, mechanical strength, and dielectric performance.
Applications Across Industries
FRP cable trays are used across industries where durability and corrosion resistance are essential:
- Chemical and Petrochemical Plants: Resistant to acid, alkali, and corrosive vapors.
- Marine and Offshore Platforms: Excellent resistance to saltwater and moisture.
- Food Processing and Water Treatment Facilities: Hygienic and non-reactive.
- Power and Renewable Energy Plants: Lightweight and suitable for large-scale installations.
- Industrial Infrastructure Projects: Ideal for areas with high humidity or harsh conditions.
The versatility of FRP cable trays makes them a reliable solution in environments where traditional metallic trays deteriorate quickly.
Installation and Maintenance Tips
Proper installation ensures optimal performance and lifespan. Follow these recommendations:
- Maintain uniform support spacing to avoid sagging.
- Use compatible FRP supports and joints for non-metallic integrity.
- Avoid contact with sharp edges or high-impact tools during installation.
- Regularly inspect joints and fasteners, especially in high-vibration areas.
- Clean periodically with non-abrasive materials to preserve surface quality.
Because FRP trays are lightweight, installation requires less manpower and equipment, significantly reducing labor costs.
FRP Cable Trays vs. Traditional Materials
| Feature | FRP Cable Tray | Steel Cable Tray | Aluminum Cable Tray |
|---|---|---|---|
| Weight | Very Light | Heavy | Moderate |
| Corrosion Resistance | Excellent | Moderate | Good |
| Electrical Conductivity | Non-Conductive | Conductive | Conductive |
| Maintenance | Low | High | Medium |
| Cost-Effectiveness | High (Long-Term) | Moderate | High |
According to a 2024 report by MarketsandMarkets, the global FRP cable tray market is projected to grow steadily due to the increasing demand for lightweight and corrosion-resistant materials in industrial applications.
Why Choose Yidian FRP Cable Trays
Yidian is a leading manufacturer specializing in the production of FRP cable trays, offering superior product quality and technical support. Our trays are developed through advanced molding techniques, ensuring consistent strength, smooth surfaces, and precise dimensions.
Yidian provides:
- Full range of ladder, perforated, and channel FRP trays
- Custom dimensions and configurations for industrial applications
- High resistance to corrosion, fire, and impact
- Complete accessories including clamps, bends, and joints
- Compliance with international safety and performance standards
With our experience in cable support systems, Yidian ensures every tray delivers long-term reliability and excellent performance in demanding environments.
Conclusion
FRP cable trays represent the next generation of cable management — combining durability, insulation, and low maintenance. They are designed for environments where performance, safety, and long service life matter most.
Yidian’s FRP cable tray solutions deliver proven strength, corrosion resistance, and adaptability for a wide range of industries. By choosing Yidian, you’re investing in safer, more efficient, and long-lasting cable support systems.
FAQ
What makes FRP better than steel or aluminum trays?
FRP is non-conductive, lightweight, and corrosion-resistant, requiring minimal maintenance compared to metal trays.
Can FRP cable trays be used outdoors?
Yes, they are UV-stabilized and ideal for outdoor and marine environments.
Do FRP trays support heavy cables?
Ladder-type FRP trays are specifically engineered for high load-bearing capacity.
Are FRP trays fire-resistant?
Yidian’s FRP trays meet fire-retardant standards and maintain strength under high temperatures.
Does Yidian offer custom designs?
Absolutely. Yidian provides custom dimensions and accessories to meet unique project requirements.
