Introduction
When designing an electrical or data system, selecting a Cable Tray may seem like a small step—but it’s a decision that affects safety, maintenance, and future scalability. The right cable tray supports cables without overheating, shields them from damage, helps with neat installation, and ensures your system remains reliable over the long term.
At Yidian, we know every project is unique, and customization matters. This guide will walk you through 10 key considerations to help you make the best choice—and design a cable system that meets today’s needs and tomorrow’s demands.
1. Material and Corrosion Resistance
Cable trays come in several materials, each suited to different conditions:
- Galvanized Steel – strong and corrosion-resistant, suitable for general indoor or moderately humid environments.
- Stainless Steel – highly resistant to chemicals and moisture, ideal for extreme or damp conditions.
- Aluminum – lightweight and corrosion-resistant, great in outdoor or marine zones.
- Fiberglass-Reinforced Plastic (FRP) – excellent electrical insulation and corrosion resistance for harsh environments.
Choosing the right material ensures longevity and safety in your specific application.

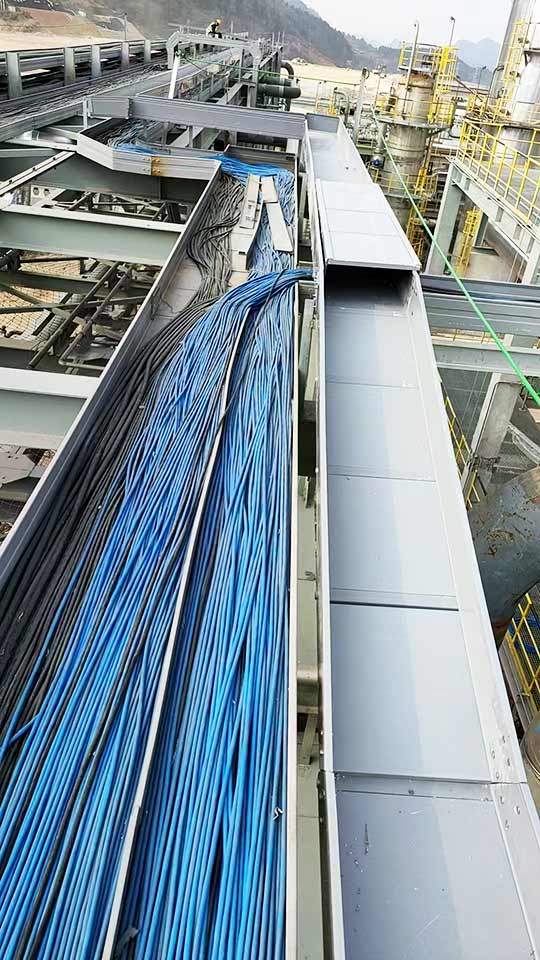

2. Load Capacity and Construction Type
Consider both the weight of the cables and any future additions:
- Ladder tray – best for large loads and frequent cable access.
- Solid bottom tray – prevents small cable bundles from slipping, suitable for fiber optics.
- Trough or wire mesh tray – offers cable visibility and ventilation; ideal for light-weight cables but limited in capacity.
Always check the tray’s load rating. Overshooting the cable weight can cause sagging, increased stress, or even structural failure.
3. Tray Width and Depth
Tray size influences capacity and installation flexibility:
- Wider trays carry more cables but require more wall, floor, or ceiling space.
- Depth affects stacking capacity; deeper trays accommodate layered cables but may reduce airflow.
Decide on an initial size that meets your current cables and includes a safety margin (typically 20–30%) for future growth.
4. Ventilation and Heat Dissipation
Overheating can damage insulation and increase resistance. Cable trays must allow heat to escape:
- Ventilated trays (ladder and mesh) promote natural airflow.
- Solid trays can lead to heat buildup—use only for low-voltage or signal cables.
- Perforated trays offer a middle ground, balancing cable support and ventilation.
Confirm temperature ratings, especially in high-current or solar installations.
5. Installation Environment and Safety Ratings
Consider external factors:
- Is the tray near machinery or corrosive elements?
- Does it cross public spaces or require fire compliance?
Look for trays with relevant certifications. For example, halogen-free materials are safer in fire risk zones. FRP trays may offer extra insulation in chemical plants or laundries.
6. Grounding and Bonding
Metal trays often serve as grounding conductors:
- Choose trays with built-in grounding connectors or bonding jumpers.
- Some fiberglass trays are nonconductive and require separate grounding cables.
Proper bonding eliminates electromagnetic interference (EMI) and reduces safety risks.

7. Modularity and Customization
Your system will evolve—choose trays that adapt:
- Standard accessories like bends, tees, and reducers make it easier to route cables.
- Yidian specializes in custom bends, support brackets, snap-on covers, and engineered components.
A flexible tray system minimizes rework during expansion or re-routing.
8. Ease of Assembly and Maintenance
Time is money. Choose cable trays that are:
- Easy to install, with quick connect options.
- Accessible, without needing to remove side panels.
- Maintained simply, with bolt access or tool-free clamps.
Good design reduces downtime and labor costs during cable upgrades or inspections.
9. Cost vs. Lifecycle Value
Initial price matters—but so do maintenance and longevity:
- Steel trays are sturdy and cost-effective—but may require corrosion coatings.
- Aluminum is pricier but requires less upkeep.
- FRP fits high-resistance or niche installations but may involve custom production.
Factor in customization, accessories, and long-term support when budgeting.
10. Compliance with Standards and Code Requirements
Trays must meet local and industry regulations:
- Verify load, fire, and cable separation rules.
- Ensure cable trays meet reactive or expansion limits in case of emergencies.
- Yidian can provide engineering documentation and test reports for code compliance.
A code-aligned system saves time during inspections and helps avoid costly modifications.
Comparison Table: Cable Tray Options by Scenario
Consideration | Ladder Tray | Solid-Bottom Tray | Wire Mesh Tray |
---|---|---|---|
Load Capacity | High | Moderate | Low to Moderate |
Heat Dissipation | Excellent | Poor | Good |
Cable Visibility | High | Low | High |
Suitability for Fiber Optic | Limited | Excellent | Good |
Ease of Cable Entry | Moderate | High (enclosed) | High |
Corrosion Resistance | Material-dependent | Material-dependent | Material-dependent |
Installation Complexity | Moderate | Low | Moderate |
Best Use Case | Power cables, heavy duty | Control/fiber optic | Signal/data cables |
Expert Insights and Yidian’s Custom Solutions
At Yidian, we’ve analyzed hundreds of installations. Common pain points include improper load calculation and narrow tray widths. We help by delivering:
- Automated tray take-offs and load calculations
- Material recommendations based on environment
- Custom bends, covers, and mounting systems designed by our engineers
One client doubled system lifespan and halved cable strain by switching from solid-bottom steel to ventilated aluminum trays.

Future Outlook: Smart Cable Tray Systems
Integration with digital monitoring is gaining traction:
- Temperature and vibration sensors mounted on trays can flag overheating or stress before failure.
- OCR or barcode systems help monitor cable routes or serial numbers.
Yidian is exploring integrated modules—especially in data centers and industrial automation.
Conclusion
Choosing a Cable Tray correctly matters—because it ensures safety, supports maintenance, and saves long-term costs. Review the 10 points above, involve your engineering team, and leverage customization options to build a tray system that truly supports your infrastructure.
If you’re planning a new installation or upgrading existing systems, contact Yidian today. Our experts guide you through every stage: from selection and load calculations to custom fabrication and installation support.
FAQ
Can I use one type of tray for all cable types?
Not always. High-current power lines need ladder trays, while fiber cables prefer solid bottoms.
How much spare capacity should I leave?
Industry best practice: plan for 20–30% spare space to accommodate future cables.
Do cable trays need fireproofing?
They don’t automatically resist fire, but you can use fire-resistant coatings or integrate barrier systems per code.
How often should I inspect trays?
Inspect every year or after major environmental changes. Load and corrosion assessment helps avoid failures.
Do you offer custom tray supports and covers?
Yes. Yidian provides a full range of fabricated supports, covers, and engineered solutions tailored to your project needs.
