Demystifying: What Is FRP Cable Tray Material?

Introduction

If you’ve ever asked yourself, “What is FRP cable tray, and how does it differ from traditional materials like steel or aluminum?”—you’re in the right place. In today’s rapidly evolving industrial landscape, durability, corrosion resistance, and cost-effectiveness are top priorities for electrical and cable support systems. That’s where FRP cable trays come into play.

As a professional in electrical systems design or infrastructure development, you need solutions that are as robust as they are efficient. FRP—short for Fiberglass Reinforced Plastic—is emerging as a top choice for environments where metal trays fall short. This guide dives deep into what FRP cable trays are, their advantages, how they’re manufactured, and when you should consider them over conventional tray materials. Let’s break it down clearly and thoroughly.

What Is FRP Cable Tray? Core Composition and Manufacturing

So, what exactly is FRP cable tray material made of? The term FRP refers to a composite material consisting of a polymer matrix (typically polyester, vinyl ester, or epoxy resin) reinforced with fiberglass strands. This material is molded into tray shapes through a pultrusion process—a continuous process that pulls fiberglass reinforcements through a resin bath, shaping and curing it into long, straight profiles used for cable support systems.

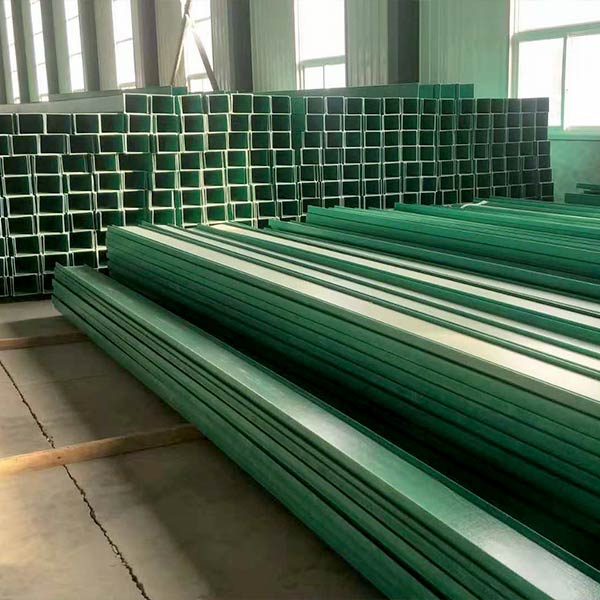

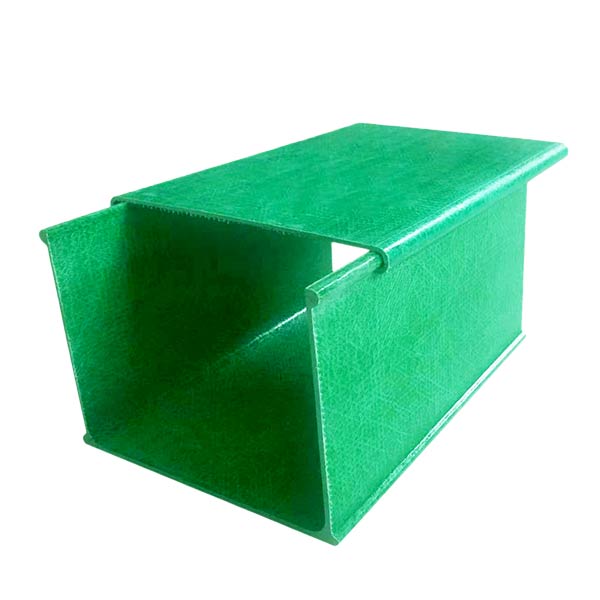

FRP cable trays typically come in ladder, perforated, or solid-bottom styles, just like their metal counterparts. What makes FRP trays unique, though, is their superior resistance to corrosive environments, including chemical plants, wastewater treatment facilities, offshore platforms, and more.

Key Features of FRP Cable Tray Material

• Non-conductive and electrically safe
• High corrosion resistance, especially in acidic, salty, or humid environments
• Lightweight compared to steel or aluminum
• Fire-retardant with low smoke emission (depending on resin grade)
• UV resistant and thermally stable
• Non-magnetic, ideal for data-sensitive installations

Comparing FRP Cable Tray to Other Common Materials

One of the best ways to appreciate FRP cable trays is to compare them side by side with traditional metal materials.

Property	FRP Cable Tray	Galvanized Steel Tray	Polymer Plastics Cable Tray	Stainless Steel Tray
Weight	Very Lightweight	Heavy	Lightweight	Heavy
Corrosion Resistance	Excellent	Moderate	Excellent	Very Good
Electrical Conductivity	Non-conductive	Conductive	Non-conductive	Conductive
UV/Weather Resistance	Excellent	Moderate	Moderate to Good	Good
Flame Retardance	Yes (with right resin)	Yes	Yes (depends on grade)	Yes
Maintenance Requirements	Low	Medium to High	Low	Medium
Lifespan in Harsh Areas	20–25 years	10–15 years	10–20 years	20+ years

According to data from the Industrial Composites Technical Guide 2023, FRP cable trays can maintain structural integrity in environments with pH values between 2 and 12, making them ideal for chemical exposure zones.

Where and When to Use FRP Cable Trays

Now that you understand what FRP cable tray material is, let’s talk about where it shines. FRP cable trays are not designed for every situation—but in the right applications, they outperform metals significantly.

Best Use Scenarios for FRP Cable Trays

• Chemical Processing Plants – Acidic vapors can corrode steel in months. FRP resists these elements for decades.
• Wastewater Treatment Facilities – Humid and corrosive conditions demand non-metallic durability.
• Offshore Oil & Gas Platforms – Salty air and high humidity destroy steel trays quickly; FRP stands up better.
• Food Processing Plants – Non-conductive and hygienic, FRP reduces maintenance risks.
• Underground Tunnels – Lightweight and corrosion-proof, ideal for difficult-to-access areas.
• Cable Bridge Systems for Utilities – High durability and no grounding needed.

When to Avoid FRP Cable Trays

• If your environment doesn’t expose cable trays to corrosion or chemicals, metal trays may be more cost-effective.
• In very high mechanical load areas (such as heavy vertical risers), additional FRP support or hybrid systems may be needed.

Advantages of FRP Cable Tray in Electrical Infrastructure Projects

If you’re considering implementing FRP trays, here’s what you stand to gain:

• Lower Lifecycle Cost: While initial costs may be slightly higher than steel, FRP requires minimal maintenance and has longer lifespans, especially in corrosive environments.
• Easier Handling and Installation: At nearly half the weight of steel, FRP trays require fewer workers and reduce the load on support structures.
• Improved Safety: Their non-conductive nature means better safety near electrical installations.
• Custom Fabrication: FRP trays can be cut and shaped on-site using simple hand tools, which reduces downtime and improves installation efficiency.
• Sustainability: FRP trays are inert and non-leaching, helping companies meet environmental standards for facility construction.

Challenges and Considerations with FRP Cable Tray Use

Despite their many advantages, FRP cable trays are not without limitations:

• UV Degradation Over Long Periods: Though UV-resistant, prolonged direct exposure without protective coatings can degrade surface properties.
• Higher Initial Cost: FRP trays typically cost more than galvanized steel upfront.
• Structural Load Limits: Not suitable for extremely heavy cabling without reinforced support or hybrid framing.

Design Tip

When using FRP trays in long runs, proper spacing of support brackets is essential. According to industry design standards, support spans should not exceed 1.8 meters (6 feet) without additional reinforcement.

Conclusion

At Yidian, we offer a wide range of FRP cable tray systems tailored to your specifications—available in various profiles, load ratings, and resin types. Whether you’re upgrading an existing installation or designing a new project from scratch, our engineers are ready to help you select the right tray type, support system, and layout.

Contact us today for expert consultation and custom quotes.
